LGX FF for Prusa MK3S 02 Setting Up The LGX FF Set Assembling The Print head

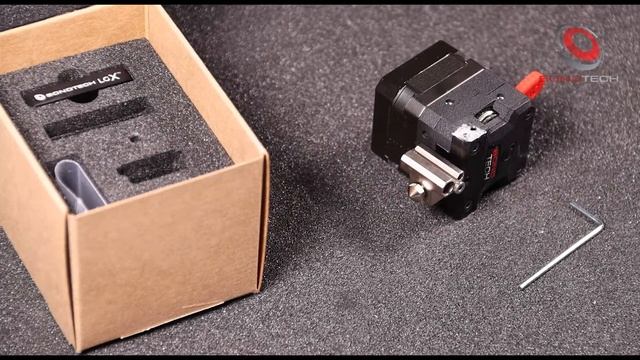

This is a Bondtech Video Guide focused on setting up the LGX FF Set on the LGX extruder to assemble a short filament path print head to be installed as a part of the LGX FF For Prusa MK3S Upgrade Kit. You can find the Bondtech For Flexibles For Prusa MK3S here: https://www.bondtech.se/en/product/bondtech-lgx-ff-for-flexibles-for-prusa-mk3s/ You can find the LGX eXtruder here: https://www.bondtech.se/en/product/lgx-large-gears-extruder/ You can find the LGX For Flexibles Set here: https://www.bondtech.se/en/product/bondtech-lgx-for-flexibles-set/ You can find the LGX™ Accessories for FF Prusa MK3S here: https://www.bondtech.se/en/product/lgx-accessories-for-ff-prusa-mk3s/ Technical Specification LGX™ EXTRUDER e-steps value : 400 on 16 bit micro-stepping setups; 800 on 32 bit micro-stepping setups. Drive wheels : hardened steel; Materials compatibility : abrasive; rigid; semi-flexible; flexible; and soft. Mounting holes : M3 Mounting patterns : bottom anterior (2 points); left (2 points), right (2 points), front (4 points), back (4 points) Holes on the sides of the LGX™ : 5 mm depth Holes on the bottom of the LGX™ : 12 mm depth retraction speed : 35 mm/s retraction distance (direct drive) for rigid materials : 0.4 mm retraction distance (direct drive) for soft materials : 3 mm Max operating temperature : 80°C LGX™ FF net weight : 269.6 g Package measurements : 80x103x73 mm Package weight : 269 g Download the LGX Technical Drawings here: https://www.bondtech.se/wp-content/uploads/2021/01/LGX-DD-FF-setups-Technical-Drawings.pdf. CREDITS Soundtrack is based on 2 Bensound cinematic tunes: Adventure; Memories. Check Bensound at https://www.bensound.com/
