Homebrew MC1350P based SSB Rig - #15 Dual Bander, RC Osc Tuner

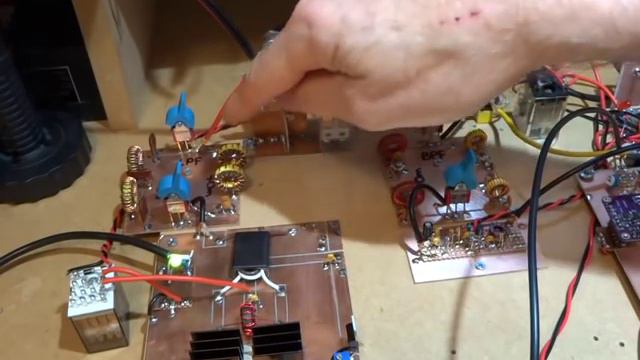

Video looking at the inclusion of a RC phase shift oscillator to facilitate tuning of the transmitter/antenna tuner. The oscillator feeds a variable 1200Hz audio signal into the balanced modulator. Also added was an 80m BPF and 80m LPF to turn turn the radio into a dual band rig.
