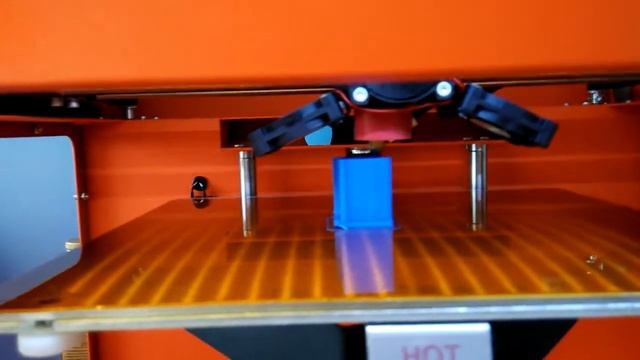

CraftBot 3D Printer: ACS Stationery Holder - 2nd print - 11/2/15
ANGLO CHINESE SCHOOL "The Best Is Yet To Be". Wow Thank you Jesus : ) This wooden stationery holder [very close to my heart] was made in 1986, in a Technical Workshop Class. - Original wood bottom plate: 100 x 100 x 10 3D printed as accurate as it can get to the original wooden stationery holder: - 2 of the 4 vertical planes: 78 x 10 x 110 - 2 of the 4 vertical planes: 80 x 10 x 110 * Offset distance from edge of bottom plate to plane: ~10 to 12.052 All dimensions in mm Modeled with Autodesk 123D Design Printer: #CraftBot Slicer: #CraftWare 1.08 beta, Release date: 2014.12.28 Temperatures in deg. C Head: 200 Bed: 60 Resolution in mm Extrusion width: 0.2 Layer height: 0.2 1st layer height: 0.3 Skirt Offset: 4mm Minimum length: 200mm Minimum count: 3 loops Speeds in mm/s Draw: 55 1st layer draw: 30 Travel: 55 Retract/Prime: 77 Far Travel in mm Retract: 0 Prime: 0.5 Adjustment - Feed rate/Extrusion, in % Support: 100/100 Soft support: 100/50
