Mercedes-Benz W203 C-Class Taillight Bulbs and Assembly Replacement

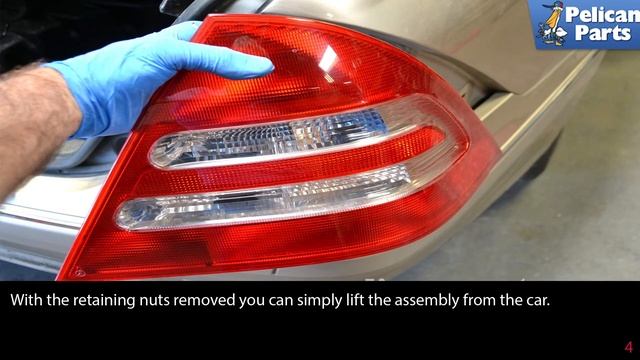

The taillight assembly on the Mercedes C320 is a modular unit that houses the running light, brake light, turn signal and reverse light all in the same housing. All of the bulbs can be replaced without removing the unit from the car by accessing and removing the bulb housing portion of the unit through the access panel in the trunk. While we demonstrate how to replace the bulbs with the unit out (for better pictures) you do not need to remove it to just change the bulbs. If you have a bulb that is out or are getting a bulb error message always inspect the electrical connector and the taillight bulb socket before just replacing the bulb. The sockets can get corrosion in them over time which can lead to a bulb not working. Make sure you clean all the sockets with a small wire brush or some Emory paper before installing new bulbs. Whether you are going to just be changing the bulbs or the entire assembly you will need to start by opening the trunk. With the trunk open you will find access panel on each side of the rear of the trunk behind the tail light assemblies. Open the access panel by slipping the panel away from the rear trim and pivoting towards the middle of the trunk. You can now see the electrical connector at the base of the housing. Remove the connector by squeezing in the sides and pulling it straight back. There are four 8mm speed nuts holding the assembly to the body: three at the rear and one on the rear quarter panel. Remove these and be careful you don't drop them down into the body. With the retaining nuts removed you can simply lift the assembly from the car. Place the assembly face down on a cloth or some other soft surface to protect the plastic lens. Now is a good time to check the gasket as well. On the rear of the assembly is a plastic "face" that houses the bulbs. Turn the plastic lever from closed to open and pull the face from the housing. With it out of the housing you will be able to see the four different bulbs along with the electrical connections. Check these for any corrosion or damage. The bulbs are simple push turn connections. Read the Full Article: https://www.pelicanparts.com/techarticles/Mercedes-W203/BODY-Replacing_Your_Taillight_Bulbs_and_Assembly/BODY-Replacing_Your_Taillight_Bulbs_and_Assembly.htm Time: 1 hour Tab: 2 Tools: 8mm socket:https://www.pelicanparts.com/Mercedes-Benz/catalog/tools/sockets-ratchets-drive.htm?utm_source=SuperTech_header&utm_medium=web&utm_campaign=tool_links&utm_content=socket Applicable Models: Mercedes-Benz W203 (2001-07):https://www.pelicanparts.com/catalog/SuperCat/W203_catalog.htm Parts Required: Taillight assembly, taillight bulbs, taillight bulb sockets, taillight electrical connector pigtail:https://www.pelicanparts.com/catalog/SuperCat/W203/W203-Electrical-Lighting.htm Hot Tip: Use a wire brush to clean the bulb holder contacts prior to installation of the bulb Performance Gain: Working tail lamps Complementary Modification: Install new center brake light
