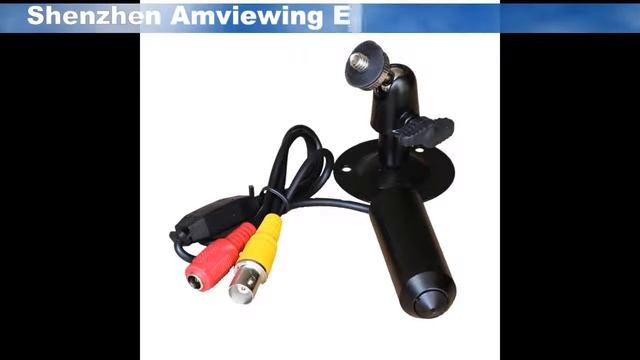

700TVL high resolution pinhole bullet camera 1/3inch Sony CCD Pinhole lens
Detailed Specifications Of The Parameters Model: AV-B120CXEP4 Image Device: 1/3" Sony Ex-View HAD II CCD Horizontal Resolution: 700TVL Minimum Illumination: 0.01Lux Effective Pixels: PAL:960(H)*582(V);NTSC:960(H)*494(V) Scanning System: PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec S/N Ratio: More Than 48dB(AGC off) Electronic Shutter: PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto Gamma Characteristic: 0.45 White Balance: Auto Lens Option: 3.7mm Pinhole lens BLC: Auto AGC: Auto Sync System: Internal Synchronization Video output: 1Vp-p 75 Oms , Negative Power Consumption: 12V±10%DC, 50mA Operation Temperature: -10℃ ~ + 50℃, RH 95% Max Storage Temperature: -20℃ ~ + 60℃, RH 95% Max Housing: Black Dimension: Ø20*67mm Weight: 50g Supplied Accessories: User manual,cable,bracket Shenzhen Amviewing Electronics Co., Ltd. Tel: +86-755-28653058 E-mail:Mike@amviewing-cctv.com Skype:amviewingcctv WhatsApp:86-18928497298 Website: www.amviewing-cctv.com
