3.20 Configure and verify EIGRP Stubs - CCNP Route Exam 300-101

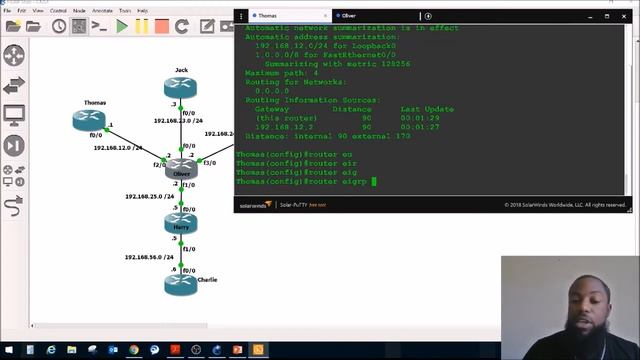

Finally back on the grind. In this video we are covering EIGRP Stubs. Notes: *We configure routers as Stub routers so they will not receive EIGRP queries if a link goes down *There are 5 different ways to control what types of queries an EIGRP stub will receive/send 1. Receive Only: The router will not advertise any network 2. Connected:**Default Mode** allows the stub router to advertise directly connected networks (you have to redistribute them). 3. Static: allows the stub router to advertise static routers (you have to redistribute them). 4. Summary: **Default Mode** allows the stub router to advertise summary routes. 5. Redistribute: allows the stub router to advertise redistributed routes. ****We can also verify stubs with 'SHOW IP EIGRP NEIGHBORS DETAIL"******* References: GNS3 Lab https://gns3vault.com/eigrp/eigrp-stub Duan Lightfoot’s Lab Everyday Shirts http://a.co/d/6xf1kE1 #labeveryday #ciscoccna #ciscoacibasics #cisconetworklearning #cisco #ccna #ccent #creatorsforchange #STEM #womeninstem #womenempowerment #womenentreprenuers #womenentreprenuers
