Switch Multilayer Cisco- Configuración Multiacceso con OSPF

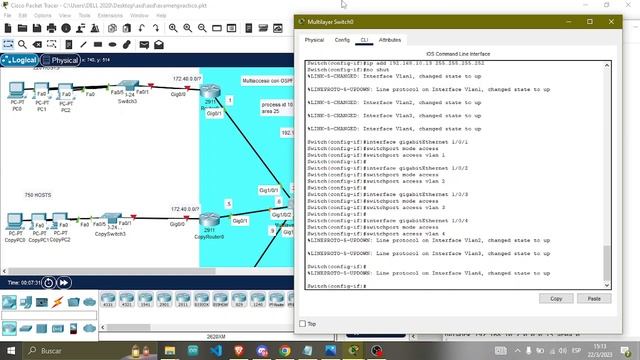

Comandos del Switch en conf t vlan 2 vlan 3 vlan 4 interface vlan 1 ip add 192.168.10.2 255.255.255.252 no shut interface vlan 2 ip add 192.168.10.6 255.255.255.252 no shut interface vlan 3 ip add 192.168.10.9 255.255.255.252 no shut interface vlan 4 ip add 192.168.10.13 255.255.255.252 no shut interface gigabitEthernet 1/0/1 switchport mode access switchport access vlan 1 interface gigabitEthernet 1/0/2 switchport mode access switchport access vlan 2 interface gigabitEthernet 1/0/3 switchport mode access switchport access vlan 3 interface gigabitEthernet 1/0/4 switchport mode access switchport access vlan 4 ip routing router ospf 10 network 192.168.10.2 0.0.0.3 area 0 network 192.168.10.6 0.0.0.3 area 0 network 192.168.10.9 0.0.0.3 area 0 network 192.168.10.2 0.0.0.13 area 0 do wr ------------------------------- #cisco #enrutamiento #ospf
