Phrozen Mini 4K Z-axis calibration

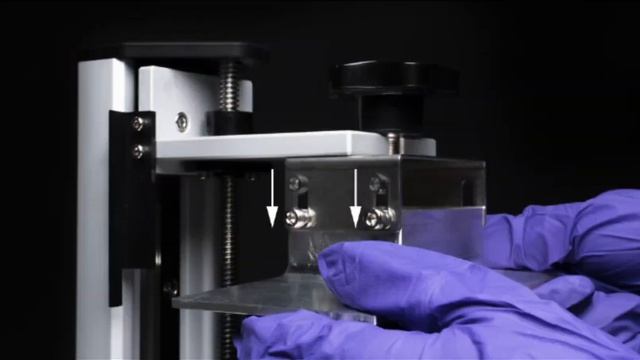

Z-axis calibration is essential for every 3D printer. Run this test to make sure that the building plate is leveled to the LCD screen. This is to ensure that models and prints will adhere to the building plate. We will guide you through the steps of calibrating your Sonic Mini 4K LCD 3D printer by using a piece of A4 paper: Step 1: Settings On the touch panel, click TOOLS, then click Z CALIB on your touch panel to begin the calibration process. Before clicking NEXT, please complete steps 2 - 4. Sonic Mini 4K Settings Z Calibration Test Step 2: Remove the Resin Vat Remove the resin vat and make sure to remove any objects present on the machine's platform. Step 3: Install the Building Plate Attach the building plate knob to the printer and align it with the pins. Screw and tighten the building plate. *Note: Please ensure that the building plate does not shift during tightening. Align build plate knob to the pins Tighten build plate knob Step 4: Loosen the Screws Use the Allen wrench included in the toolbox to loosen all 4 screws on the sides of the building plate in a counterclockwise direction. After loosening it, double-check to see if the plate is loose and movable. Loosen the screws on the build plate Step 5: Pull the Building Plate down Pull the building plate in a downward motion until the screws on the building plate have been pulled down completely. Pull down build plate Step 6: Place a piece of paper on the LCD Prepare a piece of A4 paper (roughly 0.07-0.10 mm) and lay it flat on the LCD screen. This piece of paper will be used for leveling the building plate. Click NEXT and wait for 1-2 minutes as the building plate extends to the LCD screen. Place a piece of paper on LCD screen Step 7: Apply Pressure on the Building Plate Once the building plate has touched down, apply pressure and press down firmly on the sides of the building plate. Pull on the piece of paper to make sure the building plate is laying tight against it. Step 8: Tighten the Screws in a Cross Pattern Order Once you have successfully adj More 3D Print Knowledge Please Click https://antinsky.com/blogs/3d-technology
