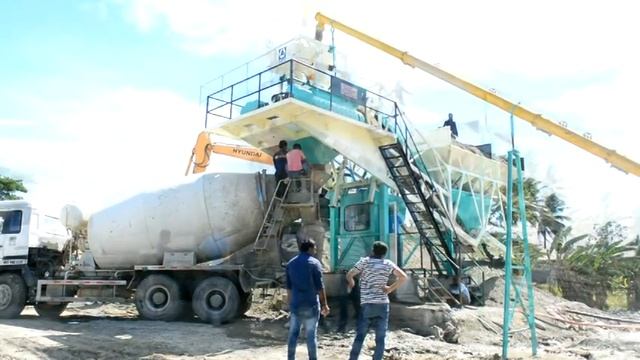

MOBILE CONCRETE BATCHING PLANT AMCB30 PEÑARANDA, NUEVA ECIJA,PHILIPPINES
MOBILE READY MIX CONCRETE BATCH MIX PLANT OF CAPACITY 30 m3/hr. MODEL AMCB 30 Consisting of: FEEDER:4 (2 X 2) aggregate storage hoppers with each bin capacity of 4.5 m3 MIXING UNIT:Twin Shaft mixer unit of capacity 750/500 SLINGER CONVEYOR:Discharge conveyor with electronic weighing system for calibrating the raw material to feed twin shaft mixture it is powered by gear and motor. CEMENT FEEDER:Cement feeding hopper of capacity 1500 kgs. is with WAM (Italy) make screw conveyor. AD MIXER INLET:Provisions for adding add mixer for atomized chemical feeding system. WATER PUMP:Also includes a water pump with atomized water control system. AIR COMPRESSOR:Ingersoll Rand / Anest Ivata or standard make air compressor powered by 3 HP electric motor. CONTROL SYSTEM:Micro controller based control system with manual and remote control mounted on main unit. Complete internal cabling of the plant included. POWER REQUIRED:Total power required is 67 HP NOTE: ALL AC MOTORS ARE SIEMENS / ABB OR EQUIVALENT MAKE, CONVEYOR BELT MRF / DUNLOP OR EQUIVALENT MAKE, GEAR BOX GREAVES/ ELECON / INGECO/ BONFIGLIOLI / PBL OR EQUIVALENT MAKE; CHAINS ARE ROLON MAKE, V-BELT- FENNER MAKE, PANEL WITH COMPUTER AND LCD MONITOR AND PRINTER, ALL CONTACTORS AND MCB IN PANEL- SCHNEIDER. Contact Person: Engr.Rommel G. Baltazar Atlas Equipments 0063 915 784 9098 0063 923 256 8378
