Scrape the Fusing Lamp | HP Jet Fusion 300 and 500 3D Printer | HP

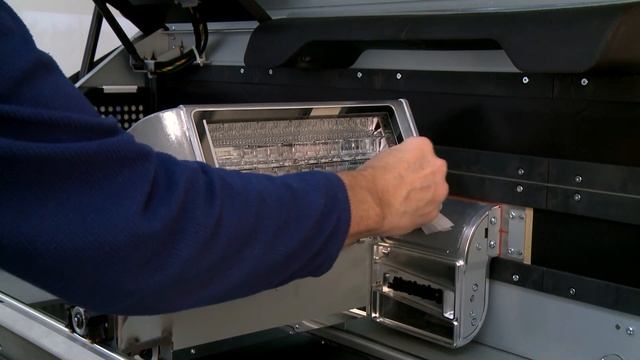

Learn how to scrape the fusing lamp on the HP Jet Fusion 300 and 500 3D Printer Series. Chapters: 00:00 Introduction 00:16 Open the top cover 00:24 Pull the fusing carriage to the center of the build chamber 00:28 Move lamp module to cleaning position 00:40 Clean fusing lamp glass and remove any debris 00:56 Reconnect lamp module to printer 01:08 Reposition fusing carriage to its home position 01:14 Close the top cover and touch Finish to complete More support options for your HP device are available at http://hp.com/support. Follow these steps to scrape the fusing lamp on the HP Jet Fusion 300 and 500 3D Printer Series: - Open the top cover. - For better access, you can move the front panel arm. - Pull the fusing carriage from the left of the build chamber to the center. - Pull the lamp release handle to disengage the lamp module from the printer. - Lift the lamp handle and rotate the lamp to the left. - Then push to lock it into the cleaning position. - Use a glass scraper with a metal razor to scrape any fused material from the fusing lamp glass. - After scraping, clean the fusing lamp glass with an antistatic alcohol wipe. - Vacuum the debris on the build chamber. - Pull the lamp to release it from its locked cleaning position. - Then rotate the lamp back to the right. - Push the lamp release handle back into place to connect the lamp module to the printer. - Pull the fusing carriage back to its home position. - Then lower the front panel arm. - Close the top cover. - On the front panel, touch Finish and OK to complete the process. - With the cleaning complete, you can resume printing. Continue the Conversation: http://hp.care/SupportForums http://hp.care/FacebookSupport http://hp.care/TwitterSupport #HP #HPSupport #HPJetFusion SUBSCRIBE: www.youtube.com/HPSupport SHOP NOW: http://store.hp.com/us/en/ About HP: HP Inc. creates technology that makes life better for everyone everywhere — every person, every organization, and every community around the globe. Through our portfolio of printers, PCs, mobile devices, solutions, and services, we engineer experiences that amaze. Connect with HP: Visit HP WEBSITE: http://www.hp.com Like HP on FACEBOOK: https://www.facebook.com/HP Follow HP on TWITTER: https://twitter.com/HP Follow HP on INSTAGRAM: https://www.instagram.com/hp Follow HP on LINKEDIN: https://www.linkedin.com/company/hp This video was produced by HP. Scrape the Fusing Lamp | HP Jet Fusion 300 and 500 3D Printer | HP
