Resistor Circuit Example

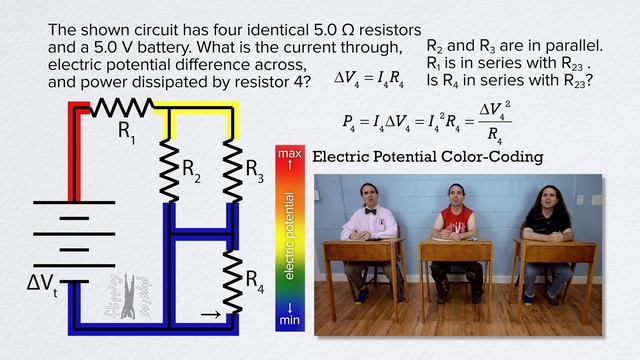

A combination series and parallel resistor circuit which includes a short circuit. Includes an animation of the electric potential energy of the charges as they move through the circuit. Want Lecture Notes? https://www.flippingphysics.com/resistor-circuit-example.html This is an AP Physics 1/JEE/NEET Topic. Previous Video: Intermediate Series and Parallel Resistor Circuit Demos and Animations https://www.flippingphysics.com/series-parallel-resistor-intermediate.html Thank you to Mrs. Zeiler and the rest of my Patreon supporters. Please consider supporting me monthly at http://patreon.com/FlippingPhysics Thank you to Diann Sloan, Josh Williams, Scott Carter, and Jonathan Everett for being my Quality Control Team for this video. http://flippingphysics.com/quality-control.html Content Times: 0:00 The example 0:20 Brainstorming 1:34 Electric Potential Color-Coding 3:17 Solution 4:05 Circuit Animation #APPhysics1 #ShortCircuit #Resistor
