Fixing a Paper Jam | HP OfficeJet Pro 7720, 7730, 7740 Wide Format AIO Printers | HP

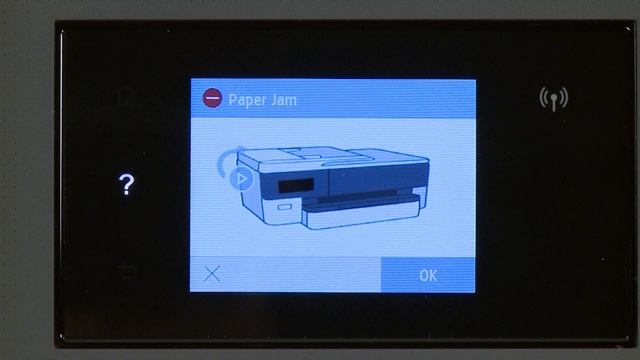

Learn how to fix a paper jam on the HP OfficeJet Pro 7720, 7730, 7740 wide format AIO printer. Chapters: 00:00 Introduction 00:25 Clear jams from paper path 03:44 Clear jams from ADF 04:35 Service printer For other helpful videos go to http://hp.com/supportvideos or http://youtube.com/hpcomputingsupport. More support options for your computing device are available at http://hp.com/support. Continue the Conversation: http://hp.care/SupportForums http://hp.care/FacebookSupport http://hp.care/TwitterSupport Follow these steps to fix a paper jam on the HP OfficeJet Pro 7720, 7730, 7740 wide format AIO printer. - If you receive a Paper Jam error message on your printer control panel, remove any jams to clear the error and resume printing. - Check the input tray, ink cartridge access area, and rear of the printer, and remove any jammed paper. - With the printer powered on, disconnect the power cord and any other cables. - Unplug the other end of the power cord from the power source. - Slide out the input tray and remove it from the printer. - Check inside the input tray area with a flashlight, and remove any paper. - Open the ink cartridge access door. - Slide the carriage all the way to the right, then all the way to the left, and remove any obstructions. - Shine a flashlight into the ink cartridge access area, and check the right side of the carriage path. - Then check the left side of the carriage path, and remove any paper or obstructions. - Close the ink cartridge access door. - Got to the back of the printer, and squeeze the two tabs on the rear access door, then lower the door. - Squeeze the two tabs on the paper path cover and remove it from the printer. - Squeeze the two tabs, and insert the paper path cover back into the printer. - Plug the power cord directly into a wall outlet. - Reconnect the other end of the power cord, and any other previously attached cables, to the printer. - The printer turns on automatically. - If it does not, press the Power button. - Load paper and reinsert the input tray. - Try to print your document. If the error persists, try to clear the jam using different media. - Slide out the input tray. Remove the paper in it. - Load media into the tray that is thicker than normal printer paper, such as photo paper or cardstock. - Slide the paper width and length guides inward until they touch the edge of the media. Do not adjust the guides so tightly that they bend the media. - Slide in the input tray. - On the printer control panel, touch OK to confirm the size and type of paper, or touch Modify to adjust the settings to match the paper you loaded. - Touch Copy, and then touch Document. - Touch Copy. - A blank copy prints. - The thick media travels through the printing path, pushing out any trapped paper and debris. - Load your original paper type into the input tray and try to print your document. - If the error persists, continue to the next step. - If you receive a Document Feeder Jam error message, clear the jam from the document feeder and scanner bed. - Remove any jammed paper from the rollers, then close the ADF cover. - Open the ADF tray, and then remove any jammed paper from under the tray. - Open the scanner lid, and then remove any jammed paper from the scanner area. - Touch OK on the printer control panel. - Try to copy or scan again. - If the error persists, continue to the next step. - If you have completed all the steps and are still experiencing issues, the printer might need to be serviced. - Contact HP Support for the service and support options for your printer. #HP #HPSupport #HPOfficeJet SUBSCRIBE: http://bit.ly/PrinterSupport SHOP NOW: http://store.hp.com/us/en/ About HP: HP Inc. creates technology that makes life better for everyone everywhere — every person, every organization, and every community around the globe. Through our portfolio of printers, PCs, mobile devices, solutions, and services, we engineer experiences that amaze. Connect with HP: Visit HP WEBSITE: http://www.hp.com Like HP on FACEBOOK: https://www.facebook.com/HP Follow HP on TWITTER: https://twitter.com/HP Follow HP on INSTAGRAM: https://www.instagram.com/hp Follow HP on LINKEDIN: https://www.linkedin.com/company/hp This video was produced by HP. Fixing a Paper Jam | HP OfficeJet Pro 7720, 7730, 7740 Wide Format AIO Printers | HP
