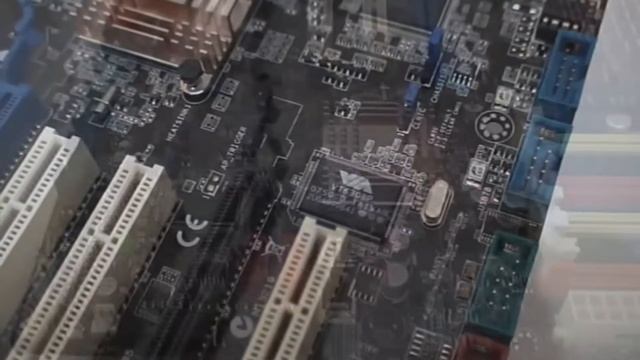

Asus P5KC AiLifestyle Series ATX - LGA775 P35 Motherboard - Small Review
Asus P5KC AiLifestyle Series ATX - LGA775 P35 Motherboard Do not forget SUBSCRIBE - Like and Share this video THANKS FOR WATCHING Technical Specifications: CPU Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Compatible with Intel® 05B/05A/06 Processors Support Intel® 45nm CPU Chipset Intel® P35 ICH9 Intel Fast Memory Access Technology Front Side Bus 1600/1333/1066/800 MHz Memory 2 x DIMM, Max. 4 GB, DDR3 1333(O.C.)/1066/800 Non-ECC,Un-buffered Memory Dual Channel memory architecture 4 x DIMM, max. 8GB, DDR2 1066*/800 / 667 MHz, non-ECC, un-buffered memory Dual channel memory architecture Expansion Slots 2 x PCIe x16 (blue @ x16 mode, black @ x4 or x1 mode) Supports CrossFire Technology 1 x PCIe x1 3 x PCI Storage Southbridge 4 x SATA 3 Gb/s ports JMicron® JMB363 PATA and SATA controller 1 x UltraDMA 133/100/66 for up to 2 PATA devices 1 x External SATA 3.0 Gb/s ports 1 x SATA 3.0 Gb/s port (SATA On-the-Go) Support RAID 0,1,JBOD LAN PCIe Gigabit LAN controller VIA VT6308P controller supports 2 x 1394a port(s) (one at midboard; one at back panel) Audio Realtek ALC 883 8-Channel High-Definition Audio CODEC Coaxial / Optical S/PDIF out ports at back I/O Support Jack-Sensing, Enumeration, Multi-streaming USB Ports 12 USB 2.0/1.1 ports (6 ports at mid-board, 6ports at back panel) BIOS 8 Mb Flash ROM DMI 2.0 AMI BIOS PnP WfM 2.0 SM BIOS 2.3 ACPI 2.0a Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) MORE MOTHERBOARDS 1. ASUS Maximus Extreme Intel X38 Express Socket 775 DDR3 https://youtu.be/KScxINBDX9s 2. ASUS A7N8X-X NVIDIA nForce2 400 Socket A (462) DDR 400 https://youtu.be/uwpYgqGOvGE 3. ASUS P5S800-VM SiS 661FX Socket 775 DDR400 https://youtu.be/7-4t3dFwnpY 4. ASUS P5KC Intel P35 Socket 775 DDR2 + DDR3 https://youtu.be/YXnN_MW2c7M 5. ASUS CUSL2-C Intel 815EP Socket 370 SDRAM https://youtu.be/9GfGl-nFljQ 6. ASUS P5VD2-VM VIA P4M900 Socket 775 DDR2 https://youtu.be/yJaLD-aWdkU 7. ASUS PP-DLW Intel E7505 2x Socket 604 DDR266 https://youtu.be/_nA2ClKFzWk 8. GIGABYTE GA-G41MT-S2 Intel G41 Socket 775 DDR3 https://youtu.be/FMR98YAlWus 9. GIGABYTE GA-P35-DS3 Intel P35 Express Socket 775 DDR2 https://youtu.be/litN7m64kGE 10. GIGABYTE GA-946GMX-S2 Intel 946GZ Expresss Socket 775 DDR2 https://youtu.be/xXNcJeKX8ls 11. GIGABYTE GA-P35C-DS3 Intel P35 Socket 775 DDR2 + DDR3 https://youtu.be/wjXrGXIR3OE 12. GIGABYTE H55M-D2H Intel H55 Socket 1156 DDR3 https://youtu.be/OOTSwx6VRV8 13. GIGABYTE GA-7ZX REV 5.1 VIA VT8363A (KT133A) Socket A SDRAM https://youtu.be/OirF52qz0JI 14. GIGABYTE GA-P31-DS3L Intel P31 Express Socket 775 DDR2 https://youtu.be/3Yf4Xrtzd1Y 15. GIGABYTE GA-EP45C-DS3 Intel P45 Express Socket 775 DDR2 + DDR3 https://youtu.be/PdL4P49n1S8 16. MSI Microstar MS6163 BX Master Intel i440BX Socket Slot-1 SDRAM https://youtu.be/vnp4usHZfVg 17. MSI P35 Neo2-FR MS-7345 Intel P35 DDR2 https://youtu.be/Q05mcYtVD5g 18. MSI PM8M-V VIA VT8237 Socket 478 DDR 400 https://youtu.be/sKbcdoTNTLc 19. MSI P4M890M VIA P4M890 Socket 775 DDR2 https://youtu.be/anoHgP3CRp8 20. MSI K7T Turbo MS-6330 VIA KT133A Socket A (462) SDRAM https://youtu.be/i4Vkz4k7aoY 21. MSI MS-6547 645 Ultra SIS 645 Socket 478 DDR333 https://youtu.be/WyY5bapPmWw 22. MSI 845 PRO VER:1 MS-6529 Intel 845 Socket 423 SDRAM https://youtu.be/Eo_gqFmqRvo 23. MSI KA790GX MS-7551 Chipset AMD790GX Socket AM2+ DDR2 https://youtu.be/2drBROFi6tk 24. MSI 694D PRO 2 MS-6321 VIA 694DP 2x Socket 370 SDRAM https://youtu.be/UIkKtHTcR7A 25. MSI K9N ULTRA MS-7250 NVIDIA nForce 570 Ultra MCP Socket AM2 DDR2 https://youtu.be/a2z0uw7v6Cc 26. LITE-ON NR146 Intel 865G Socket 478 DDR 400 https://youtu.be/PuV6bV7CwLM 27. Jetway P4MDPT Via P4M266A Socket 478 DDR266 https://youtu.be/iOGCN0hw8jo 28. DFI PE11-TC VIA Apollo P4X266E Socket 478 DDR1 + DDR2 https://youtu.be/KoDJu-fOghc 29. Intel AA 654850-206 Socket 7 EDO https://youtu.be/eawMCvxbiNk 30. ASROCK 2Core1333-2.66G Intel 945GC A2 Socket 775 DDR2 https://youtu.be/PYtv9k5JA8g 31. ASROCK 775i65G Intel 865G Socket 775 DDR2 https://youtu.be/UBh34x_qCAA 32. ECS P4S5A/DX+ SiS 645DX Socket 478 DDR333 https://youtu.be/tJZvsldhwoE 33. ECS MCP61PM-HM REV:2.2 NVIDIA nForce 430 Socket AM2+ DDR2 https://youtu.be/Cvxc2EFAPqo
