X ray scanner with triple GEM detector

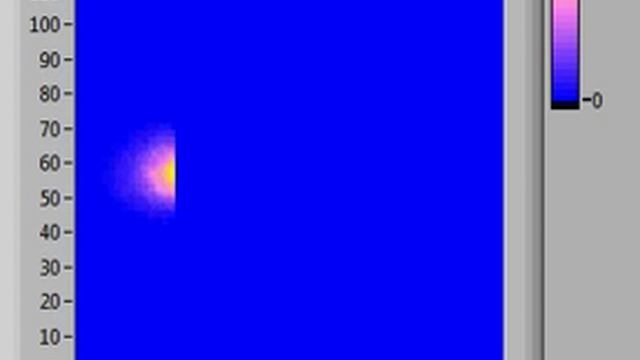

This movie has been performed with a triple gem detector moving in front of an X ray beam. Parameters : Molybdenum X ray source with 300 microamper at 30 KV. Triple GEM detector AR CO2 at 1050 V Time gate 100 ms Beam dimension: 1.5 x 2.0 cm2 Image dimension 6.5 x 7.0 cm2
