ASUS GeForce RTX 3090 ROG STRIX Deshroud

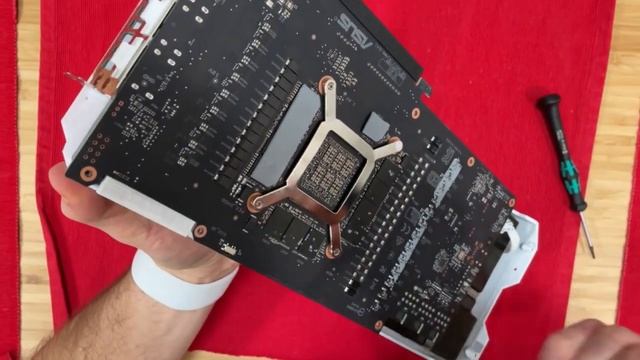

Deshroud of an ASUS GeForce RTX 3090 ROG STRIX OC White. Should be identical to for 3070 and 3080 of the STRIX series, both OC and non OC. 1) Remove back plate and side logo bracket (leave screws around chip untouched) 2) Detach fan cable at the back 3) Unscrew shroud from backside of card (4 screws, two only accessible through card's side, I used a flat screw driver instead of a Phillips head. 4) Reattach back plate (to protect thermal pads and components at the back) 4) Detach shroud cable at the side 5) Remove shroud 6) Remove fans from heat sink
