DIY Home Automation for Electric Car Charging

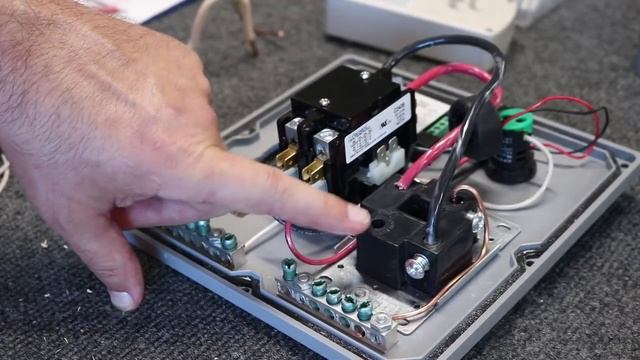

https://300mpg.org/2018/07/22/diy-home-automation-controller-for-electric-car-charging/ We build a box to automate Electric Car charging using a smart switch and a home automation system. Step by step directions. Parts list below. This system allows me to charge my electric car at whatever time I want to, using a timer, a remote, and through programming including variables. This allows me to avoid charging at peak electric use times. I'm also planning on doing some experimenting to integrate my solar into the home automation system. As always, see more at: http://www.300mpg.org Components used in this project: Samsung SmartThings hub or kit: https://amzn.to/2Nz9cZr Leviton Smart Switch: https://amzn.to/2zZPnIV 2-Pole 40A Contactor with 120V coil: https://amzn.to/2A6uZ98 Digital Multi-Display w/ Current CT: https://amzn.to/2mBIFzk NEMA 14-50 240V electric outlet or outlet to match your EVSE: https://amzn.to/2mBIIv0 NEMA 14-50 Appliance Cord: https://amzn.to/2OarL79 Colored LED Indicator Light: https://amzn.to/2NBb0RB 8"x8"x4" PVC Electric Junction Box: https://thd.co/2uDScdq Ground Bar (x2): https://amzn.to/2LCenad 14 AWG stranded wire: https://amzn.to/2LtrRIQ Female Solderless (Crimp) Female Spade Connectors: https://amzn.to/2mDnfl3 Please note: On this project, the screws on the neutral bus bar originally were THROUGH the project box faceplate. Once that was realized, it was corrected by mounting the neutral bus to a non-conductive spacer with no electrical connection to the mounting screws. Music Credit: "Shaving Mirror" Kevin MacLeod (incompetech.com) Licensed under Creative Commons: By Attribution 3.0 License http://creativecommons.org/licenses/b... We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
